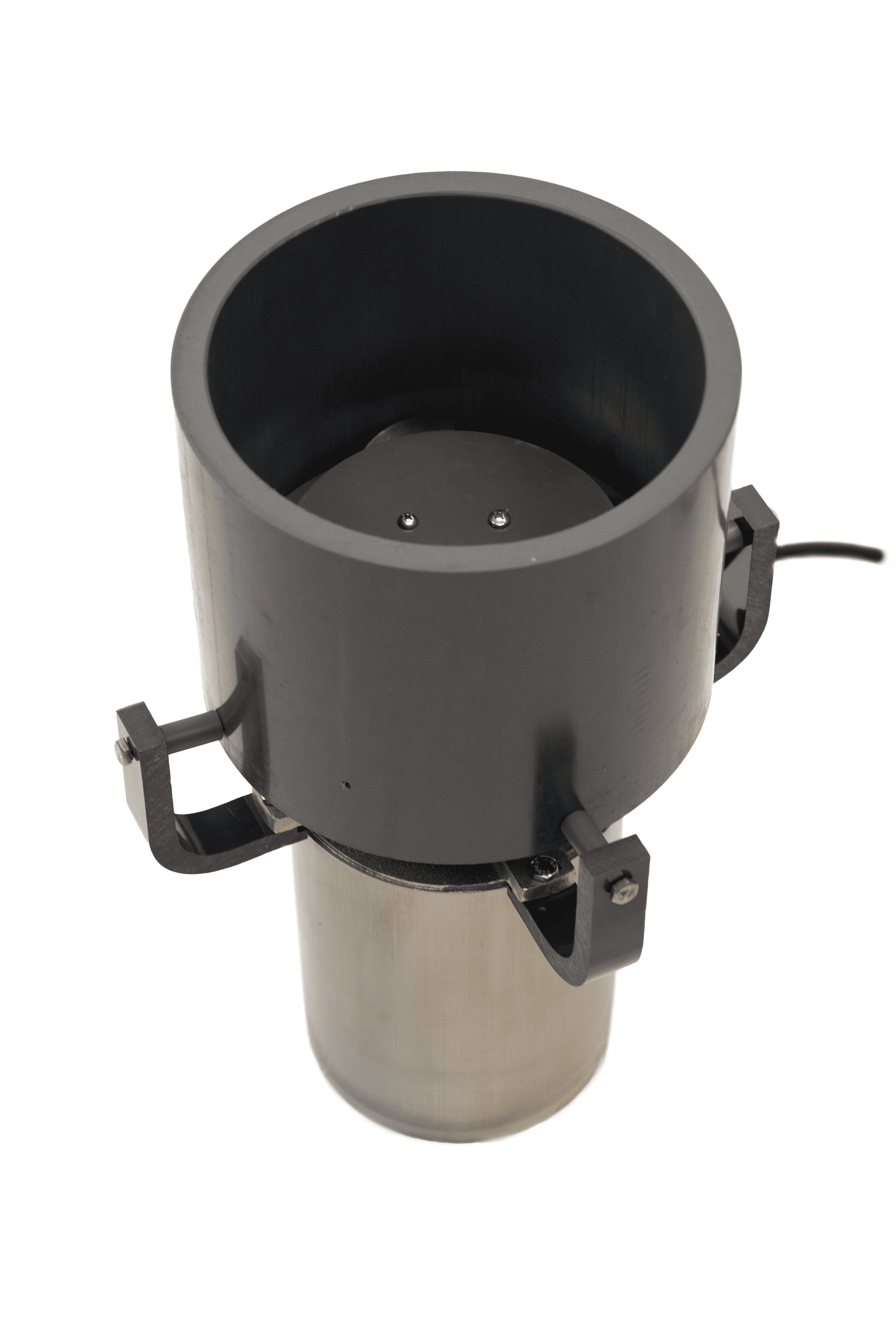

MOTOR ASSEMBLY: AERATING FOUNTAINS

$1,305.00$2,250.00

  • Info
  • Review
Info

Description

Keeping our principles for efficiency and sustainable aquatic life in place, Bearon Aquatics offers an alternative for those who prefer aesthetics as much as efficient aeration. Our F-Series Aerating Fountains provide excellent aeration to any lake or pond while displaying a stunning circular-V-shaped pattern. Throwing large goblets of oxygen-depleted water as high as 6′ up and as far as 21′ out helps expose it to air and transfers it to areas in the pond that are also low on oxygen. For those keeping a close eye on operating costs, these fountains are comparable to many on the market but use half of the electrical power as most. These lightweight and rugged models can operate in water as shallow as 14”. In addition, the beauty of either of these models can be enhanced by our LED Fountain Light Sets.

Motor Assembly includes the motor, inner sleeve, brackets, power cord, and prop & disc.
Shroud and Float not included.

Model F500F:
Part Number 35000 Specifications:
• 1/2 Horsepower
• 5 Amps (115V) / 2.5 Amps (230V)
• 14″ minimum depth
• 106 GPM
• Height of Spray: 4′
• Width of Spray: 15′
• Cord Lengths (ft): 50, 100, 150, 200, 250, 300, 350
(200′ cord is for 230 volts only)
• Shipping Weights: 42, 48, 56, 60

Model F1000F:
Part Number 31000 Specifications:
• 1 Horsepower
• 7 Amps (115V) / 3.5 Amps (230V)
• 17″ minimum depth
• 130 GPM
• Height of Spray: 6′
• Width of Spray: 21′
• Cord Lengths (ft): 50, 100, 150, 200, 250, 300, 350
(200′ cord is for 230 volts only)
• Shipping Weights: 48, 45, 60, 66
Review
' skin='skin2'}}

Ice Eaters are sized by the hole that you want them to create. Below is the diameter that each unit will create under normal conditions. We tell customers to always plan for the worst.


P250 - 1/4HP - 20-25ft diameter hole - 360 gallons per minute of water movement.

P500 - 1/2HP - 40ft diameter hole - 1075 gallons per minute of water movement.

P750 - 3/4HP - 60ft diameter hole - 1250 gallons per minute of water movement.

P1000 - 1HP - 80ft diameter hole - 1400 gallons per minute of water movement.


Any power cord over 150ft will have to be 230 volt due to the amperage draw.


Ice Eater Sizing and Voltage.

Best Ice Eaters, Fountains, and Aerators.

See More Products

We are a stocking distributor of all Bearon Aquatics Ice Eaters, aerators, and fountains

we provide repair services for the Bearon Aquatics line of products.
